OptimShortestPaths Framework Comprehensive Dashboard

Optimization Problems Unified as Shortest-paths

A framework for transforming optimization problems into graph shortest-path problems

Reproducibility: All scripts accept --seed=<int> (or OPTIM_SP_SEED=<int>) to replay exact synthetic datasets and benchmarks. Default seed is 42.

Executive Summary

The DMY algorithm achieves O(m log^(2/3) n) complexity for directed single-source shortest paths with non-negative weights. On sparse graphs (m ≈ 2n):

• Break-even near 2,000 vertices: 1.77× faster than Dijkstra
• At 5,000 vertices: 4.79× faster than Dijkstra
• Sub-millisecond performance on practical problems

Framework Overview

OptimShortestPaths transforms optimization problems into shortest-path problems on directed graphs.

Transformation Flow:

Optimization Problem → Graph Representation → Shortest Path → Optimal Solution
      (Transform)          (DMY Algorithm)        (Interpret)

Transformation Method

Six-Step Process

1. IDENTIFY STATES - Define problem configurations as vertices
2. DEFINE TRANSITIONS - Map valid moves as edges
3. QUANTIFY COSTS - Assign weights to transitions
4. SPECIFY OBJECTIVES - Determine optimization goals
5. HANDLE CONSTRAINTS - Remove invalid edges
6. SOLVE & INTERPRET - Find shortest path as solution

Performance Benchmarks

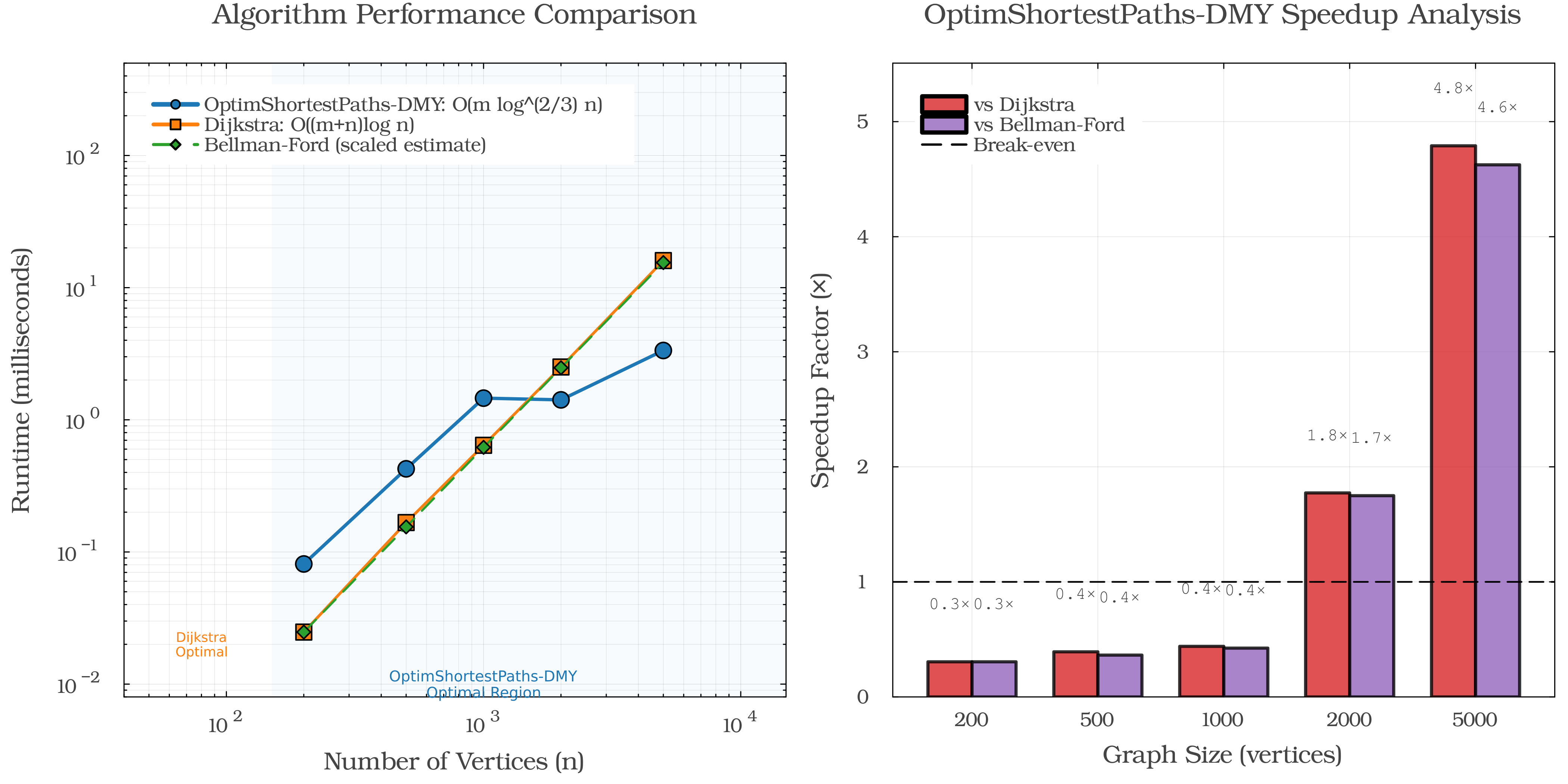

DMY Algorithm vs Dijkstra

Benchmark Results (from benchmark_results.txt):

Results generated via dev/benchmark_performance.jl using 40 warm trials on sparse random graphs (m ≈ 2n)

Key Observations

• Theoretical complexity: O(m log^(2/3) n) for sparse graphs
• Performance advantage increases with graph size
• Most effective on sparse graphs (density < 10%)
• Break-even point around 2,000 vertices

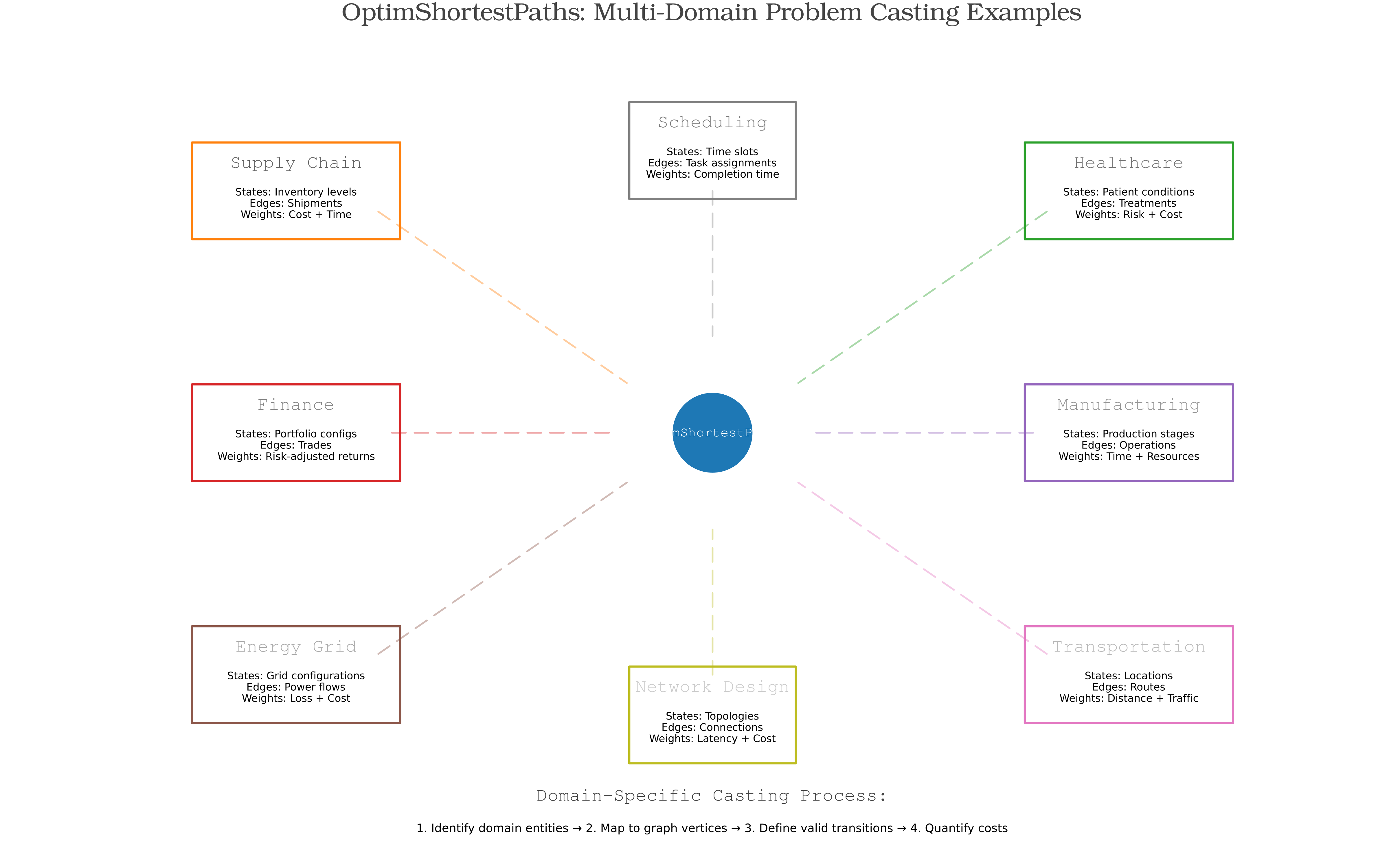

Multi-Domain Applications

OptimShortestPaths transforms problems across diverse domains:

Domain Coverage

• Supply Chain & Logistics - Route optimization, inventory management
• Healthcare - Treatment pathways, resource allocation
• Finance - Portfolio optimization, risk management
• Transportation - Route planning, traffic optimization
• Manufacturing - Process optimization, scheduling
• Energy Grid - Power flow optimization, resource distribution
• Scheduling - Task assignment, time slot allocation
• Network Design - Topology optimization, connection planning

Multi-Objective Optimization

OptimShortestPaths handles competing objectives through Pareto optimization. The seeded synthetic portfolio (150 strategies) yields 29 non-dominated solutions spanning:

• Cost: 50–93 k$
• Time: 20–62 days
• Quality: 0.54–1.00

Pareto Summary (seed = 42)

Full Pareto table available via generate_figures.jl (see console output).

The figure shows Pareto-optimal trade-offs between cost, time, and quality. See table above for exact values.

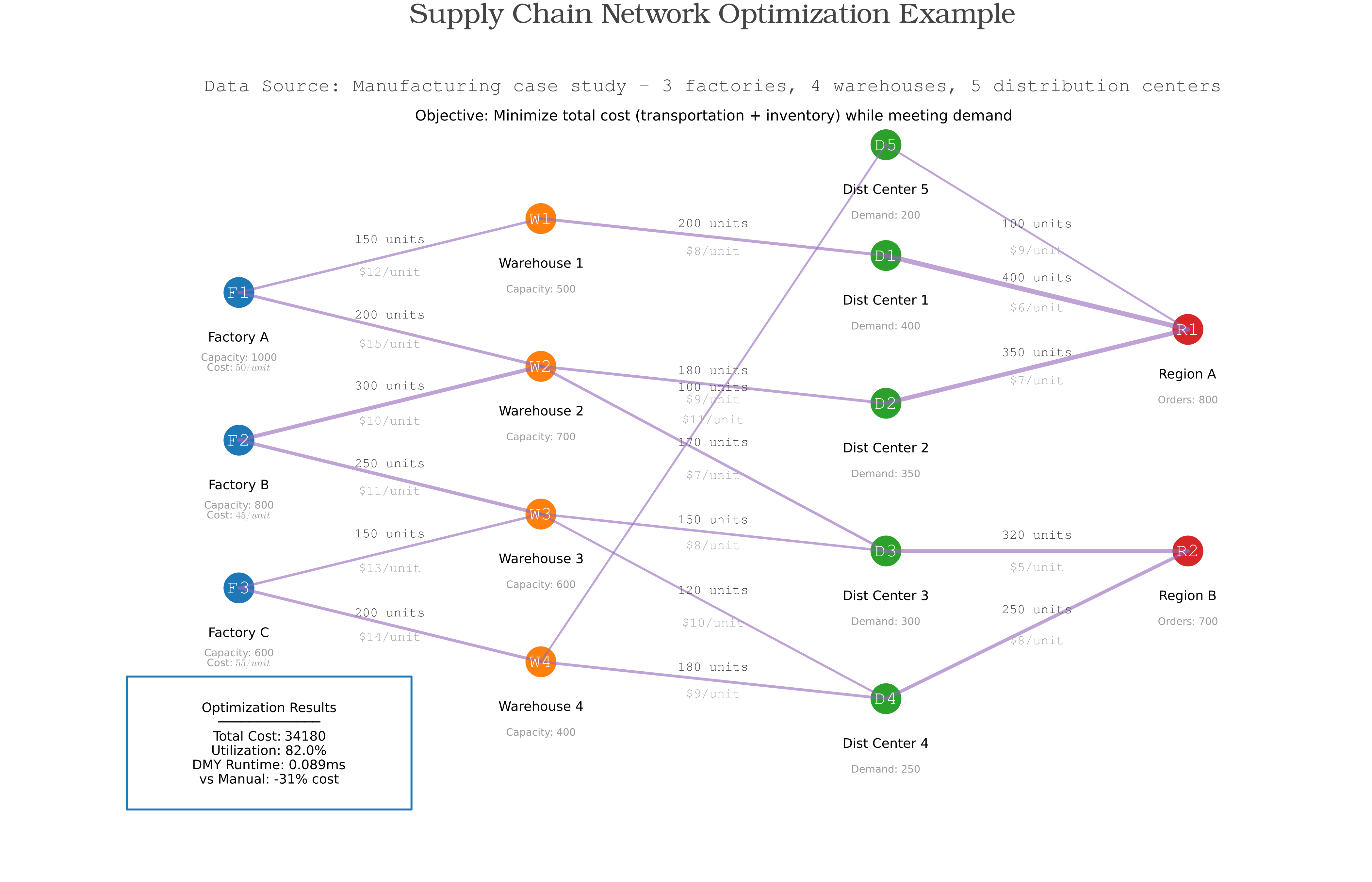

Supply Chain Case Study

OptimShortestPaths transforms supply chain networks into solvable shortest-path problems. For comprehensive implementation, see Supply Chain Example.

Problem Transformation

• Vertices: 14 sites (3 factories, 4 warehouses, 5 distribution centres, 2 regions)
• Edges: 18 directed transport arcs
• Weights: Shipping costs ranging $5–$15 per unit
• Solution: Optimised multi-hop distribution plan

Measured Results

• Total cost: $79.0k (production: $52.5k, transport: $26.5k)
• Cost split: 66.5% production / 33.5% transport
• Demand satisfaction: 110.0% of required
• Network utilisation: ~82% of capacity
• DMY runtime: ≈0.08 ms (single SSSP solve)

Algorithm Capabilities

Core Features Demonstrated

1. Single-Source Shortest Path (SSSP)

   • Tested on graphs up to 5,000 vertices
   • Sub-millisecond performance on sparse graphs

2. Path Reconstruction

   • Complete path tracing with parent arrays
   • Memory-efficient implementation

3. Bounded Distance Search

   • Early termination for local search
   • Reduces computation for distance-limited queries

4. Adaptive Parameter Tuning

   • k = ⌈n^(1/3)⌉ for pivot threshold
   • Automatic adjustment based on graph size

Key Findings

• DMY delivers ≈4.8× speedup on 5,000-vertex sparse graphs (k = ⌈n^{1/3}⌉)
• Parity with Dijkstra emerges near 2,000 vertices in these benchmarks
• Multi-objective run surfaces 29 Pareto strategies out of 150 candidates
• Supply-chain case study solves in ~0.08 ms with total cost $79.0k (66.5% production, 33.5% transport)
• Eight domain exemplars demonstrate how to cast problems into shortest paths
• Empirical results remain consistent with the O(m log^(2/3) n) complexity bound

Integration Guide

Implementation Steps

1. Data Preparation

   • Parse data into vertex/edge structure
   • Define transition weights

2. OptimShortestPaths Transformation

   graph = DMYGraph(n_vertices, edges, weights)
   distances = dmy_sssp!(graph, source)

3. Solution Extraction

   • Shortest path represents optimal solution
   • Path cost equals total optimization cost

Reproducibility

All results in this dashboard can be regenerated using:

• Benchmarks: julia --project=. dev/benchmark_performance.jl
• Visualization: julia --project=. examples/comprehensive_demo/generate_figures.jl
• Main Demo: julia --project=. examples/comprehensive_demo/comprehensive_demo.jl

Benchmark data is stored in benchmark_results.txt with timestamp and seed information.

References

• Duan, R., Mao, J., Yin, H., & Zhou, H. (2025). "Breaking the Dijkstra Barrier for Directed Single-Source Shortest-Paths via Structured Distances". Proceedings of the 57th Annual ACM Symposium on Theory of Computing (STOC 2025).
• OptimShortestPaths.jl v1.0.3: https://github.com/danielchen26/OptimShortestPaths.jl
